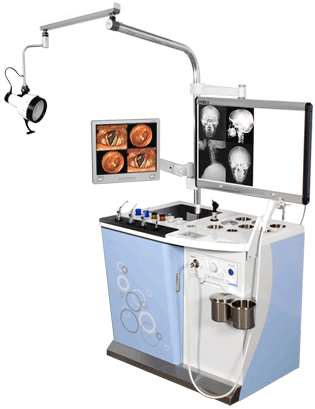

Upgraded Compact Sized Diagnosis and Treatment
Unit
The model of UE-3000 is designed for optionally
installing the visual imaging system, Medvision,
to give doctors in Pediatrics, Internal Medicine
to enhance the higher precision of diagnosis, as
one of their key medical devices, with its very
moderate size made. |
| |
 |
|
Suction
System
|
Oilless Motor Pump (250W)
Suction Bottles(3000cc,1500cc) |
| Spray System |
Oilless Compressor Pump (60W) |
| Spray |
Straight-type 2EA,Curve-type 1EA |
| Anti-Fog Device
|
Operation with One Touch Switch
Removal of Moisture in the Endo scope |
| Top body |
Marble |
| Control Switch |
Main Switch, Chair (Up, Down,
Front,Rear,Reset),Visual system,
Micro System, Film, Anti-Fog
Device, Monitor, Light |
| Dimension |
634(W) x 872(D) x 775(H) mm |
| Weight |
110kg |
| Power Source |
AC 220V, 50/60Hz |
| Power Consumption |
1500W |
| Class & Type |
Class 1, Type B Equipments |
| License NO. |
05-263 |
|
|
| |
 |
|
| Microscope
(with CCD) |
Patient's chair & Docter¡¯s stool |
| Light source (LS-150) |
Remote control |
| Light source (LS-250) |
X-ray film illustrator (slim) |
| Illumination light |
Monitor (LCD/CRT) |
| Otoscope set (charge) |
Medvision |
|
|
| |
 |
| |
|
|
|
| |
|
