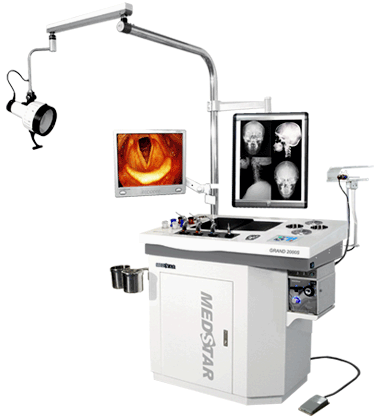

Compact Sized Diagnosis and Treatment
Unit
The model of Grand-2000S is designed for installing
the specific optional equipment, which are very
helpful for doctors to diagnose and treat the patients,
precisely, for instance, visual imaging system with
monitor as well as X-Ray View Panel in the Pediatrics,
and Internal Medicine, with its moderate size made. |
| |
 |
|
Suction
System
|
Oilless Motor Pump (250W)
Suction Bottles(3000cc,1500cc) |
| Spray System |
Oilless Compressor Pump (60W) |
| Spray |
Straight-type 3EA (or Straighttype
2EA, Curve-type 1EA ) |
| Anti-Fog Device
|
Operation with One Touch Switch
Removal of Moisture in the Endo scope |
| Top body |
Marble |
| Control Switch |
Main Switch, Chair (Up, Down,
Front,Rear,Reset),Visual system,
Film, Anti-Fog Device, Monitor,
Light |
| Dimension |
925(W) x 561(D) x 848(H) mm |
| Weight |
105kg |
| Power Source |
AC 220V, 50/60Hz |
| Power Consumption |
1300W |
| Class & Type |
Class 1, Type B Equipments |
| License NO. |
05-315 |
|
|
| |
 |
|
| Microscope
(with CCD) |
Patient's chair |
| Light source (LS-150) |
Docter's stool |
| Light source (LS-250) |
X-ray film illustrator (slim) |
| Illumination light |
Monitor (LCD/CRT) |
| Otoscope set (charge) |
|
|
|
| |
 |
| |
|
|
|
| |
|
