Most Highly Upgraded ENT Integral Treatment
Unit

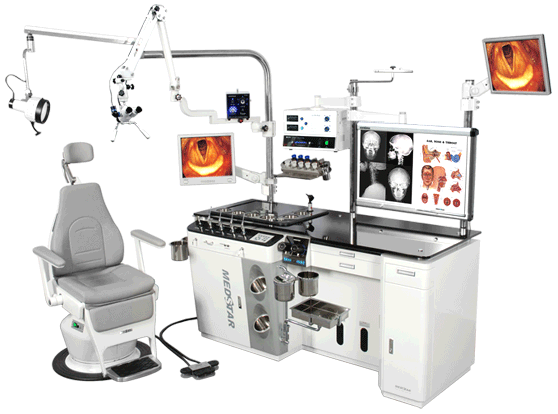

The model of New Millennium Grand is the most highly
advanced integral treatment unit for ENT, which
can be equipped with a full range of medical device
at the option, in order to maximize the effect of
diagnosis and treatment for the patients in ENT,
while the marvelous tempered glass is installed
on the top to give doctors and patients more comfortable
and cozy surroundings. |
| |
 |
|
Suction
System (main)
|
Oilless Motor Pump (250W)
Suction Bottles (3000cc,1500cc) |
| Suction System (sub) |
Oilless Motor Pump (100W)
Suction Bottles (1500cc 2EA) |
| Spray System |
Air Compressor
Oilless Compressor Pump (250W)
Stainless Air Tank |
| Spray |
Straight-type 3EA,Curve-type 1EA |
| Ventilation Device
|
Operation with One Touch Switch |
| Anti-Fog Device |
Operation with One Touch Switch
Removal of Moisture in the Endo scope |
| Top body |
Compressive Reinforced Glass |
| Control Switch |
Main Switch, Chair(Up,Down,Front,
Rear,Reset),Ventilation Device,
Visual system,Micro System,Film,
Anti-Fog Device, Monitor, Light |
| Dimension |
1670(W) x 831(D) x 899(H) mm |
| Weight |
170kg |
| Power Source |
AC 220V, 50/60Hz |
| Power Consumption |
1500W |
| Class & Type |
Class 1, Type B Equipments |
| License NO. |
07-148 |
|
|
| |
 |
|
| Microscope
(with CCD) |
Patient's chair |
| Light source (LS-150) |
Doctor's stool |
| Light source (LS-250) |
X-ray film illustrator (slim) |
| Illumination light |
Monitor (LCD/CRT) |
| Otoscope set (charge) |
Remote control |
|
|
| |
 |
| |
|
|
|
| |
|
