State of the Art Version of ENT Total
Treatment Unit

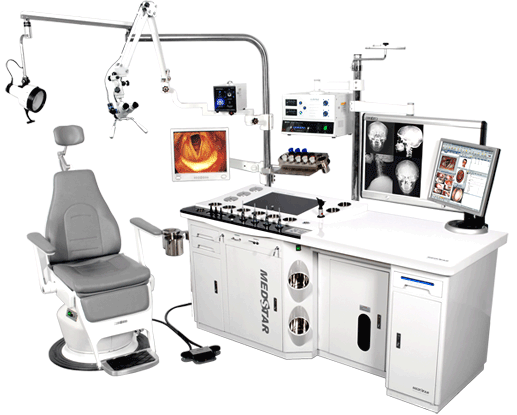

The model of Millennium Grand is designed for installing
all of component equipment in order for doctor to
diagnose and treat patients in an integral way at
the option, while the marble plate is put on the
top for the efficient communication between doctors
and patients. |
| |
 |
|
Suction
System (main)
|
Oilless Motor Pump (250W)
Suction Bottles(3000cc,1500cc) |
| Suction System (sub) |
Oilless Motor Pump (100W)
Suction Bottles (1500cc 2EA) |
| Spray System |
Air Compressor
Oilless Compressor Pump (250W)
Stainless Air Tank |
| Spray |
Straight-type 3EA,Curve-type 1EA |
| Ventilation Device
|
Operation with One Touch Switch |
| Anti-Fog Device |
Operation with One Touch Switch
Removal of Moisture in the Endo scope |
| Top body |
Marble |
| Control Switch |
Main Switch, Chair(Up,Down,Front,
Rear,Reset),Ventilation Device,
Visual system,Micro System,Film,
Anti-Fog Device, Monitor, Light |
| Dimension |
1810(W) x 720(D) x 888(H) mm |
| Weight |
165kg |
| Power Source |
AC 220V, 50/60Hz |
| Power Consumption |
1350W |
| Class & Type |
Class 1, Type B Equipments |
| License NO. |
02-73 |
|
|
| |
 |
|
| Microscope
(with CCD) |
Patient's chair |
| Light source (LS-150) |
Doctor's stool |
| Light source (LS-250) |
X-ray film illustrator (slim) |
| Illumination light |
Monitor (LCD/CRT) |
| Otoscope set (charge) |
Remote control |
|
|
| |
 |
| |
|
|
|
| |
|
