Diagnostic and Operational Microscope
for ENT

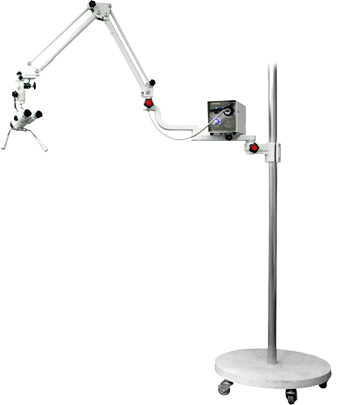

The OM-300B, Diagnostic and Operational Microscope
for ENT, is designed for mainly diagnosing and treating
the patients in ENT at the Amplitude of 3, 5, 8,
with objective focus of f=25, while the light source,
LS-150 is installed and supplied to focus on the
object, doctors want take a precise look at.
The images can be not only displayed on the monitor,
standalone, with the installation of CCD(Charge
Coupled Device) camera, adaptor, memory board and
monitor, but also installed as one of key components
in the integral ENT Treatment Unit. |
| |
 |
|
Power
source
|
AC220V, 50/60§Ô |
| Power consumption
|
240W |
| Image sensor |
SONY 1/3¡± CCD |
| Pixels |
410,000 pixel |
| Min illumination |
0.3lux |
| Video output |
Composite : 1Vp-p |
| Halogen lamp |
150W(15V) |
| Light intensity |
Adjustable (0-150W) |
| Memory board |
1,2,4 Capture, DC 5V, NTSC |
| Dimensions |
301(W)¡¿270(D)¡¿119.5(H) |
|
|
| |
 |
|
| Monitor |
2 |
| Camera gun |
1 |
| Cart |
1 |
| Otoscope(¡Ë4,50mm) |
1 |
|
|
|
| ¡Ø Options : Digital Polaroid Printer
|
| |
 |
| |
|
|
|
| |
|
